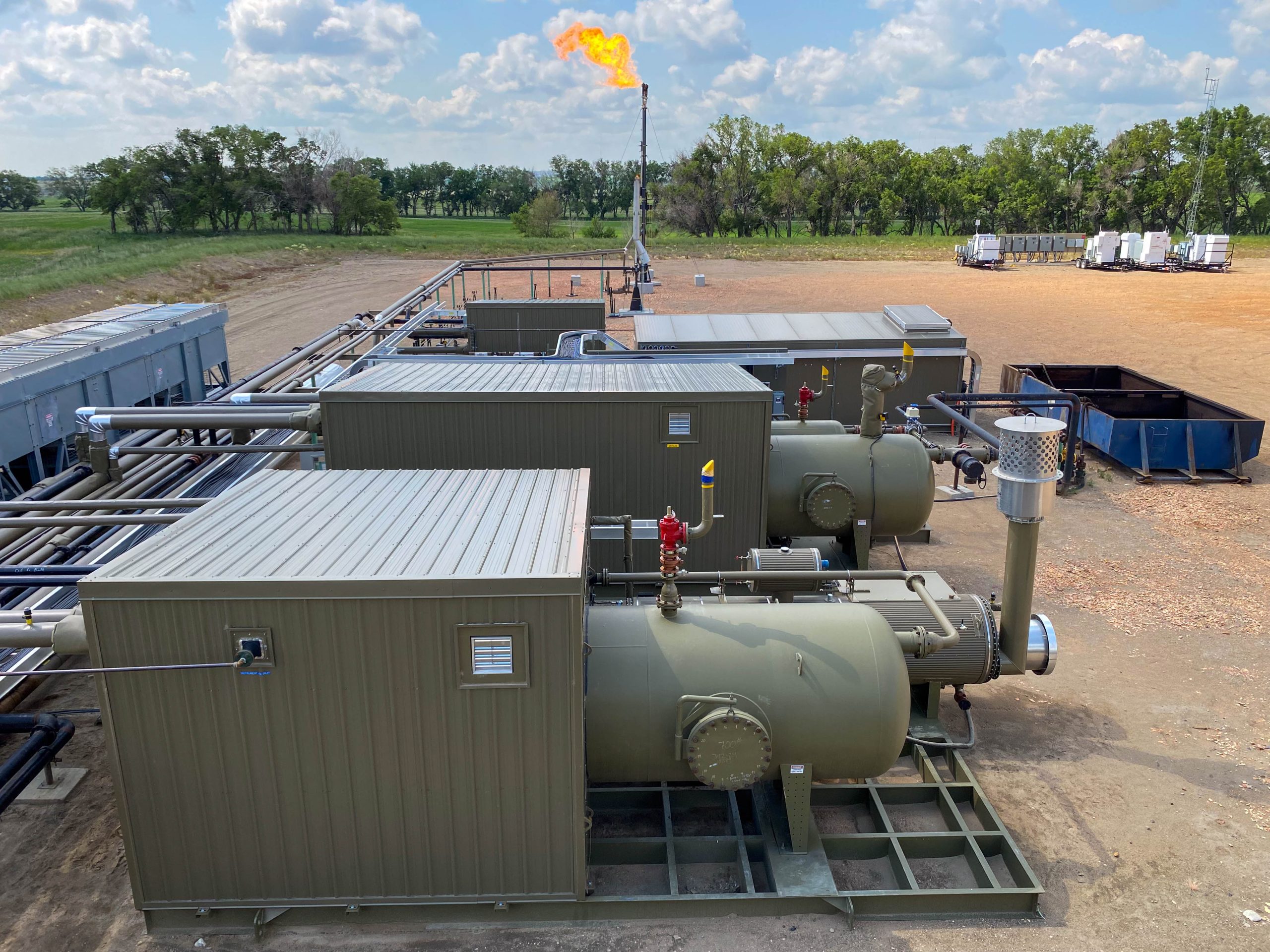

Steffes provides a wide variety of custom production equipment for the oil and gas industry. We engineer and manufacture our equipment to the highest industry standards in a controlled manufacturing environment designed specifically for creating production equipment.

Our engineers have first-hand experience designing a range of production equipment packages with unique configurations. And we’re available to our customers from start to finish – from the initial walkthrough to commissioning, delivery, and start-up.

STEFFES OFFERS

- 3D parametric design modeling
- Certified ASME pressure vessel code shop
- In-process quality checks and specialized testing
- Integrated electrical automation and UL/ETL listed controls
- Manufactured in a controlled environment, guaranteeing superior quality
- Automated pipe welding and fabrication equipment, yielding consistent product
- Applicable state electrical certification inspection prior to shipment

Instrument Air Skid

Instrument Air Skid

Reliable, Cost Effective Compliance

• Adaptable and customizable for well sites of any size
• Engineered for all-weather performance
• Northern & Southern Unit designs
• Climate controlled, enclosed design to guard against elements like dust and hail
• Consistent operation and peace of mind
• Significantly lower cost than full-site electrification
• Compliant with environmental standards
• Dry receiver option available

Learn more here!

Separation Skids

Separation Skids

Designed to ASME Section VIII Division I Pressure Vessel specifications

• Complete piping manifolds, weather-sealed and plumbed to skid edge
• Metering options including:
 - Coriolis
 - Magnetic flow tube
 - Orifice meter tube
• UL/ETL listed control panels
• Custom layouts
• Insulated modular homes with integrated fully-removable frame
• Horizontal and vertical vessels available

Flare Knockout Skids

Flare Knockout Skids

Designed to ASME Section VIII Division I Pressure Vessel specifications

Meets API 521 vessel specifications for liquid removal from vapor

• Captures liquids from gas lines, preventing emissions, and ensuring clean, efficient combustion
• Drains liquid from the vessel with an automated system
• Insulated for equipment longevity, easily removable for maintenance
• Completely pre-assembled in-house in a controlled environment
• Horizontal and vertical vessels available

Well Site Piping

Well Site Piping

All pipe weldments are fabricated in accordance with ASMEB31.3.

Save time on field installs by using custom Steffes well site piping solutions. At Steffes, we measure and fabricate all piping to meet the site’s specifications, ensuring repeatable, high-quality fit-ups every time.
 
In addition to being manufactured in a controlled environment, we pressure test all our piping before it goes into the field.

Indirect Heaters

Indirect Heaters

Provide efficient heat by warming glycol and pumping it to the desired location.

• Safe, cost-effective option for tanks, treaters, and pipelines
• Insulated vessel installed on fabricated, painted skid frame
• High- and low-level sensor safety feature, sight glass assembly
• Pre-wired and inspected Profire BMS System with Profire Fuel Train installed
• Insulated fuel gas scrubber and drain piping
• Can also be used as a line heater for process fluids
• Many BTU sizes available
 
Approved by ND Industrial Commission to be as close as 21 feet from the storage tank.

ASME Pressure Vessels

ASME Pressure Vessels

Steffes offers standard and custom-built separators, heater treaters and other vessels, including:

• Heater Treaters
• Separators
• Flare Knockouts
• Fuel Gas Scrubbers
• H2S Scavenger and Treating Vessels
• Free Water Knockouts
Other custom-designed vessels are also available.

ASME Section VIII Division I Pressure Vessel code shop with U, UM and R stamps

Contact Us

Our skids and production equipment are custom engineered, designed and manufactured, complete site solutions designed for plug-and-play use in the field. Our experienced team can help determine which equipment will maximize the performance of your site.
